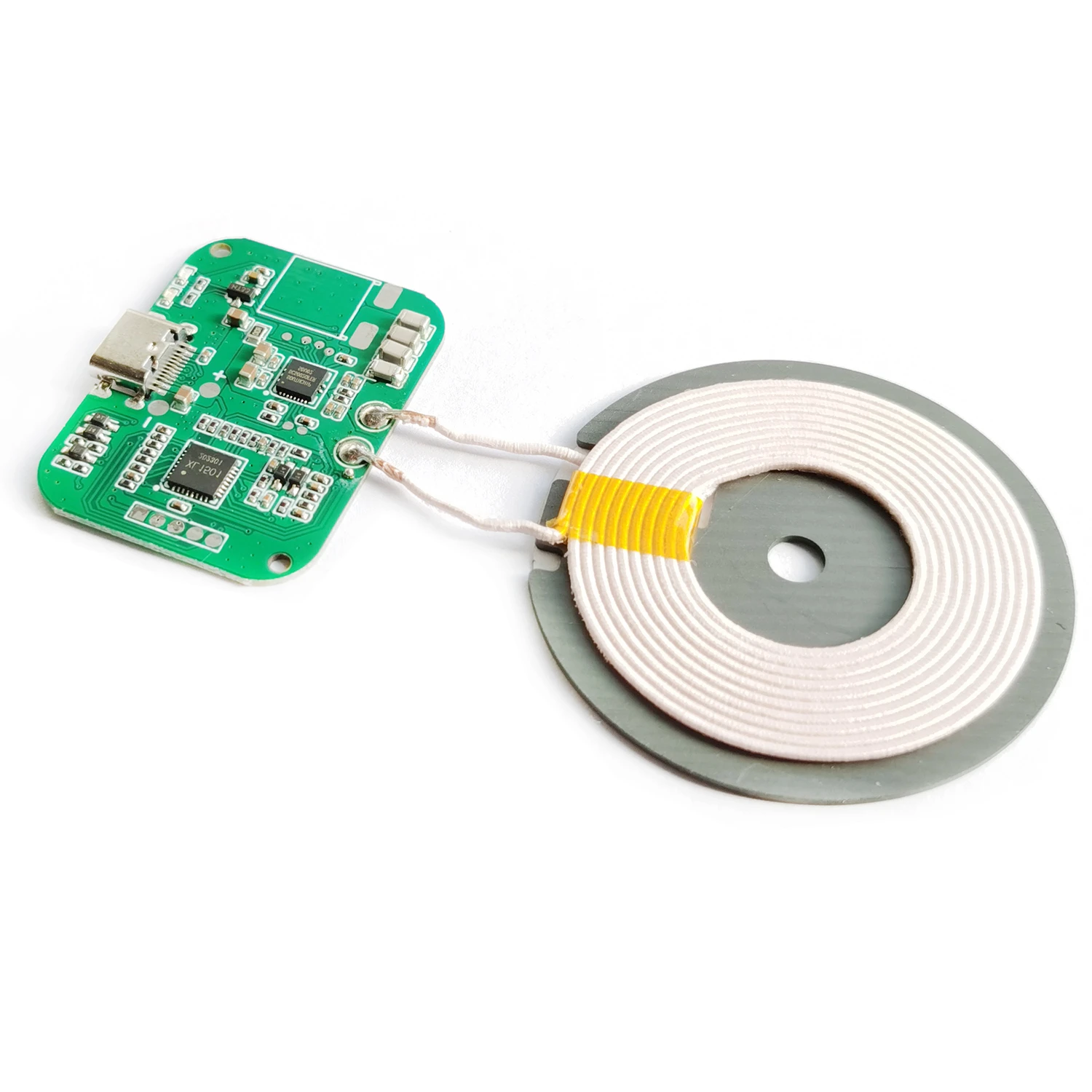

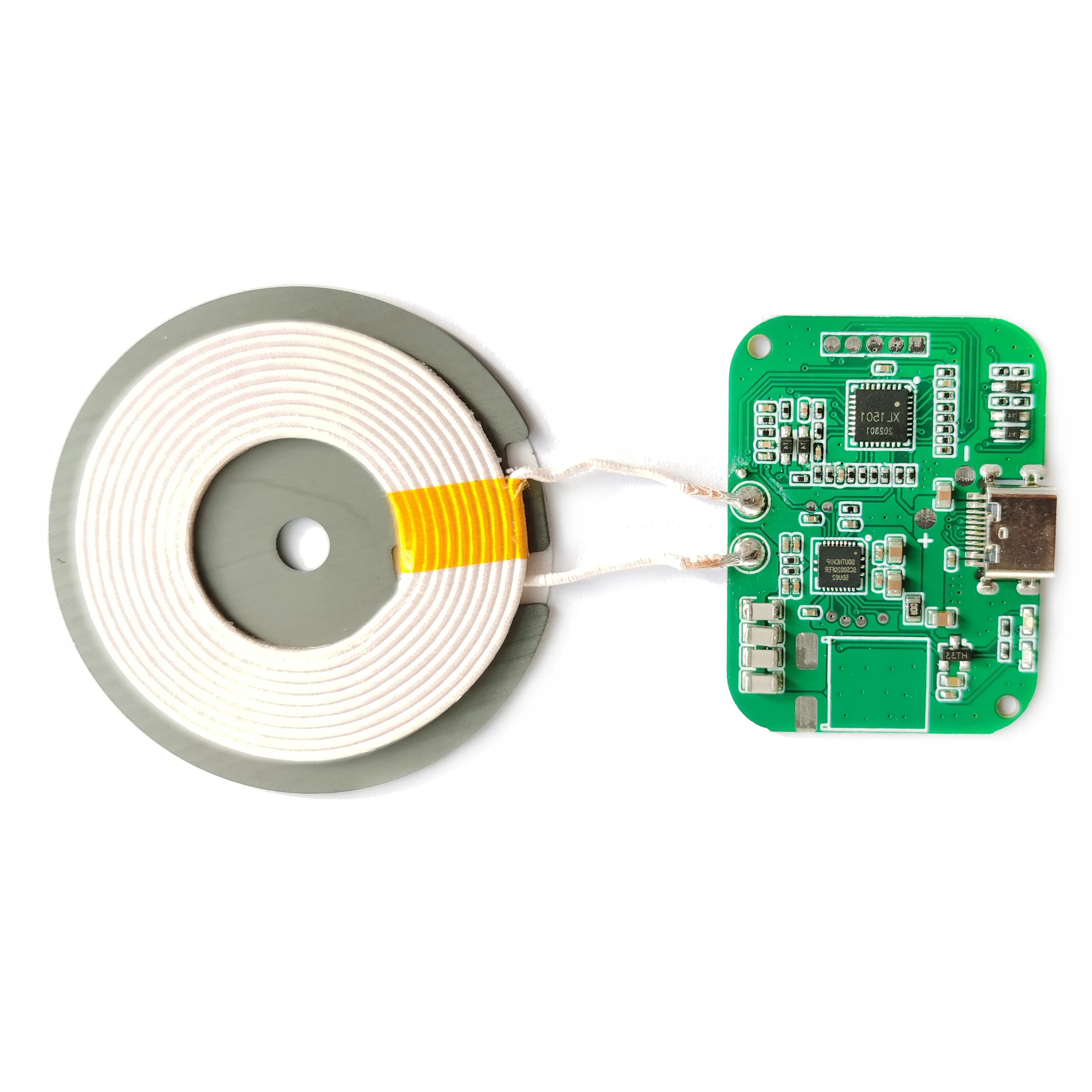

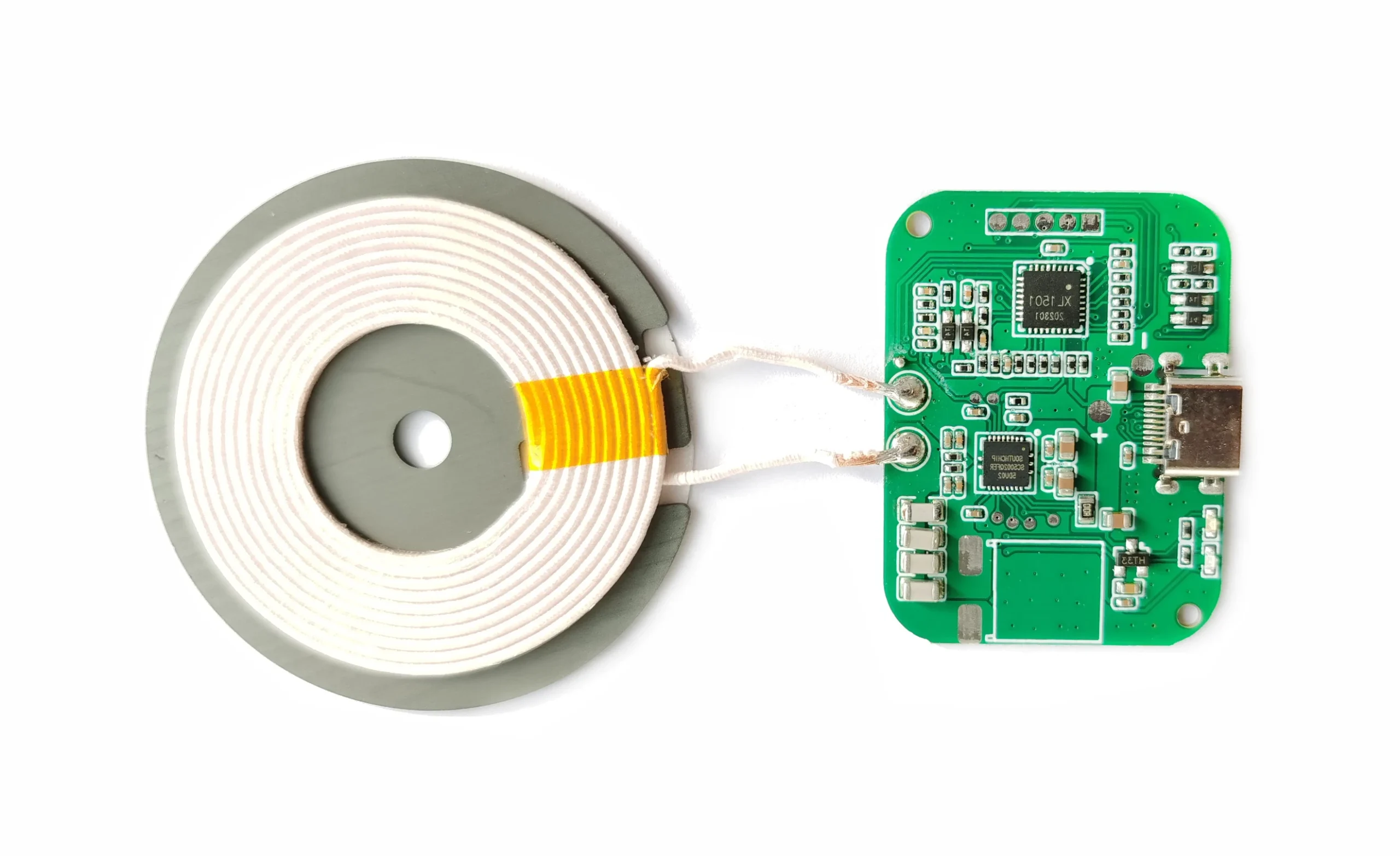

Qi EPP MPP 15W 20W fast charging wireless charger PCBA module PD QC3.0 type-C port adapter wireless charging customization

Product Description

Input Power	4.75V~12.25V
Input current?	1A -2A Max
Output Power	5W 7.5W 10W 15W
Charging distance	1~10mm
PCBA board size	40303MM
On-board device height	1.7MM
Coil size	50502.5MM
Base material	FR4 , Any specialized material as for your choice
MOQ	1 piece
Wireless Charging Efficiency	>84%
WorkingTemperature	-20¡æ to 55¡æ
Usage	for mobile phone wireless charging, for car wireless charging,for sports devices
Certificate	SMETA, ISO 9001, RoHs, FCC, KC,QI, NQA
Features	1. The HG-S7 chip supports PD, QC2.0, QC3.0, and AFC fast charging protocols. 2. The highest output rated power to the receiving end: 15W. 3. static FOD & dynamic FOD when working. 4. OTP , OCP , OVP , UVP . 5. Can pass KC, FCC, CE, BSMI, NCC, BPP 5W QI certification, EPP 10W / 15W_QI certification. 6. Support Type-C interface communication upgrade. 7. High degree of program integration, ultra-simplified peripheral circuits.
Service	One-Stop OEM service
Warranty	THREE years

Click? China Qi EPP MPP 15W 20W fast charging wireless charger PCBA module supplier?to know more.

PRODUCT PARAMETERS

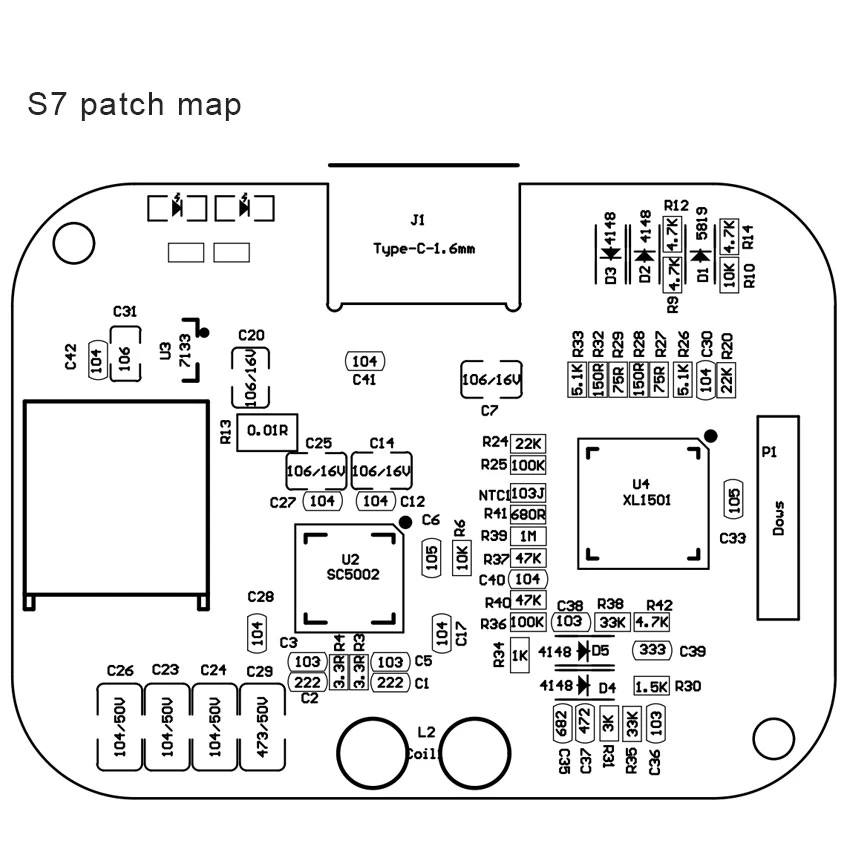

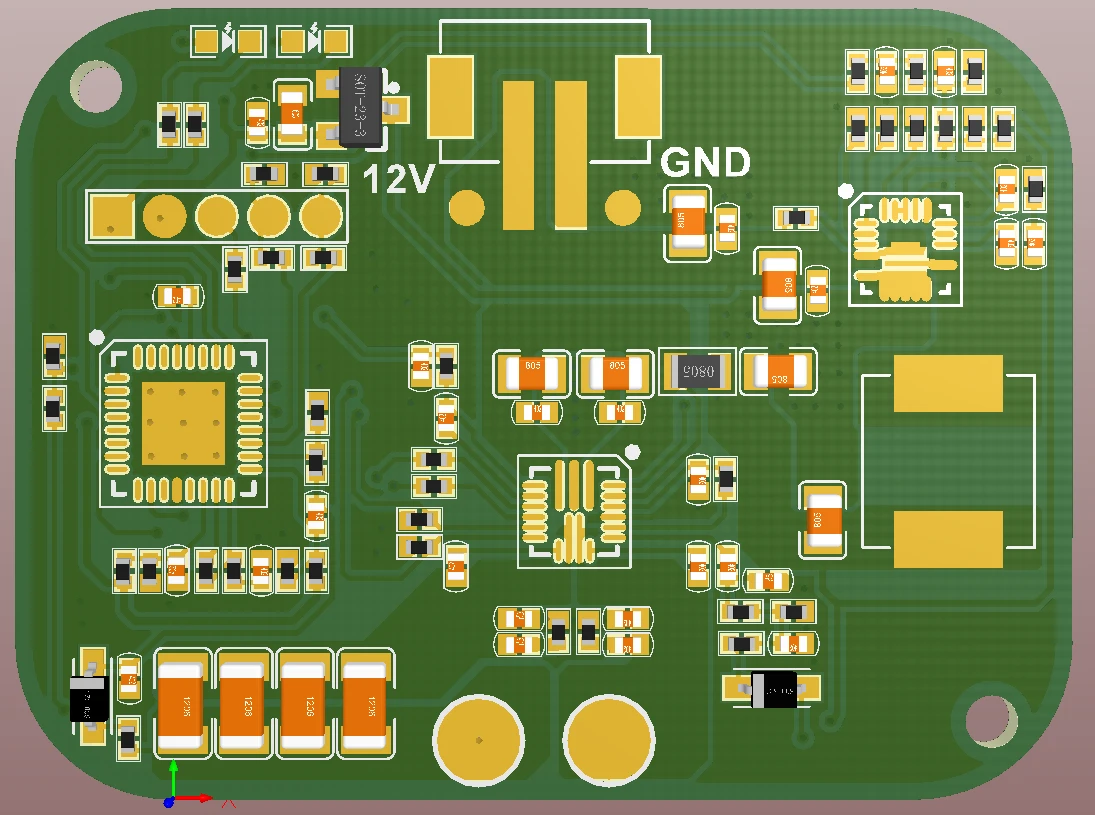

1. HG-S7 schematic map

2. HG-S7 main control chip circuit

3. HG-S7 flowchart diagram

4. HG-S7 Full-bridge drive MOS circuit

5. HG-S7 Working parameters

?	Test Conditions	Rated value	Minimum value	Maximum	unit
Standby power consumption	Vcc=5V	125	80	150	mW
Operating Voltage	VCC=5V	5	4.5	5.8	V
	?	VCC=9V	9	8	13	V
	?	VCC=12V	12	8	13	V
Working current	VCC=5V	1.5	0.5	1.65	A
	?	VCC=9V	1	0.5	1.65	A
	?	VCC=12V	0.8	0.5	1.65	A
Working distance	Samsung S8 + phone	2	1	10	mm
working frequency	Adjust load offset	–	105	205	Khz
Protection current	VCC=5V	1.6	1.55	1.65	A
	?	VCC=9V	1.6	1.55	1.65	A
	?	VCC=12V	1.6	1.55	1.65	A
Output Power	VCC=5V	5	4	5	W
	?	VCC=9V	10	7	12	W
	?	VCC=12V	10	7	15	W
Transmission efficiency	?	80	50	85	%
Protection temperature	?	60	55	65	¡æ

6. Efficiency test (max 85.7% min 74.2%)

Working distance	Input voltage	Input Current	Output voltage	Output current	Transmission efficiency
2mm	12.01V	0.790A	9.04V	0.9A	85.7%
5mm	12.03V	0.827A	9.03V	0.9A	81.6%
2mm	9.05V	1.047A	9.01V	0.9A	85.5%
5mm	9.05V	1.100A	9.00V	0.9A	81.3%
2mm	5.03V	1.132A	5.01V	0.9A	79.2%
5mm	5.02V	1.207A	5.00V	0.9A	74.2%

CUSTOMIZATION ONLY FOR YOUR DIVERSE NEEDS

We can customize ANY size (the diameter of the coil ranges from 20~45 mm ),

ANY shape (the round circle, the semicircle, the sector)£¬
ANY charging distance (1~8 mm)£¬
ANY power port £¨type A, type C, multiple ports£©,

ANY size receiver coil
CUSTOMIZE multiple function according to your requirements.

Certifications

Company Profile

Shenzhen Huagon Technology Co., Ltd. is a history of more than 10 years company.
We are mainly engaged in the R & D and customized designing and production of wireless charging module for 15W 50W 200W power, Power bank module for 18W PD 45W 65W 100W Power , car adapter with A/C PD 45W Power .
We have more than 20 engineers, PCBA painters and 3D designers, a team focusing on the research and application of electronic charging modules. Our production team has more than 80 people, daily delivery for PCBA module reaches over 30,000 units .
Our company has passed IOS9001,SMETA ,QI ,MFI Certificates and product have passed KC, CE, ROHS, FCC BSMI ICC certificates.
With this amazing team, we can provide you :
1. Services for PCB schematic design, layout , mechanical design, mold opening .
2. SMD for PCB and finally product assembly .
3. 100% inspection before packaging and transportation.
4. High quality after-sales service with 3 years warranty .
