1¡¢Product advantages:
?

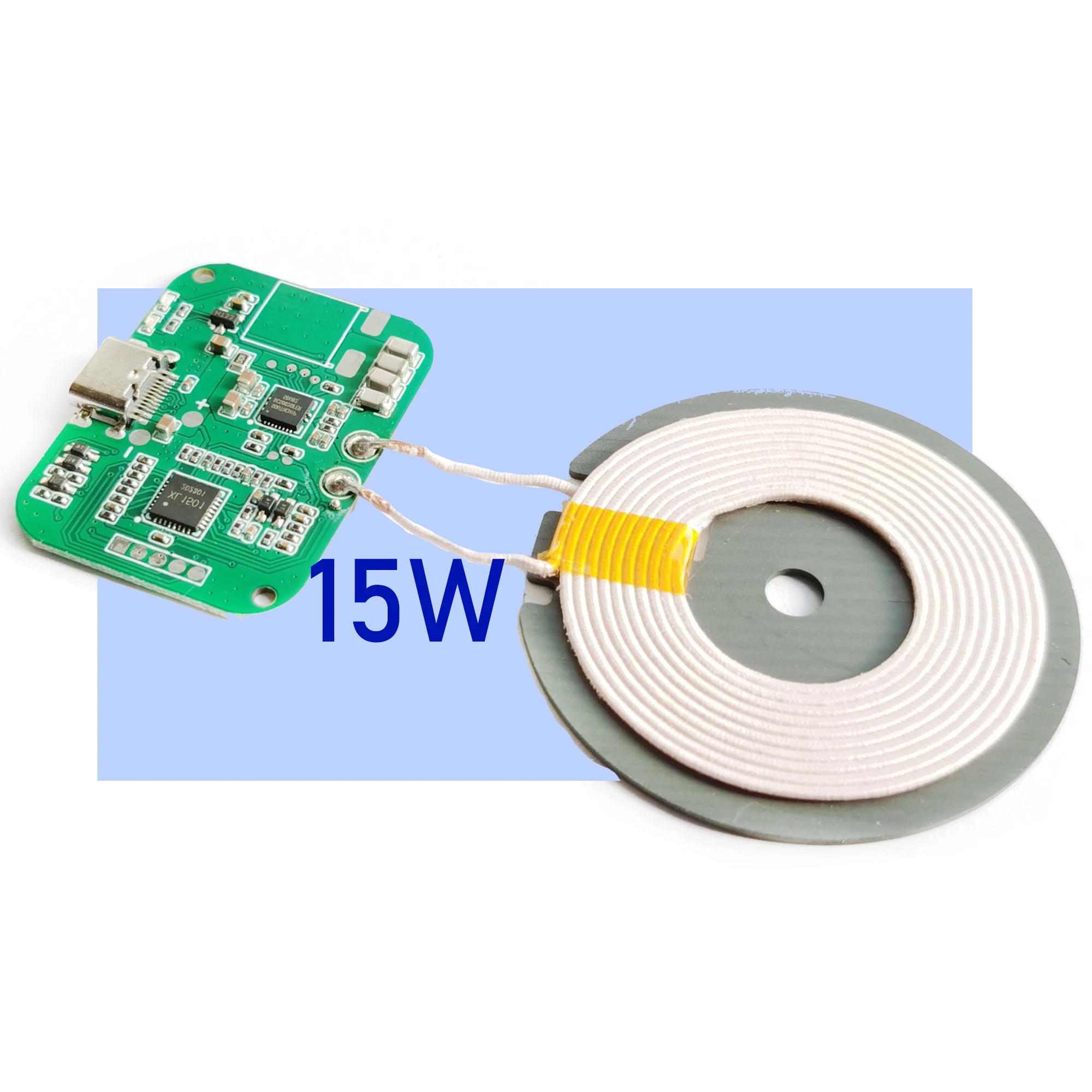

1. Support 5W 10W 15W fast wireless charging to mobile phone
?
2. Wireless Charging distance 3-10 mm
?
3. Support QC3.0,PD, AFC, charging protocol
?
4. 85% high wireless charging efficiency
?
5. OVP design 15V / OCP design 2A / OTP design 65¡æ
?
6. Product quality guarantee period is 3 years
|
Product eEmbedded?
|
?
|

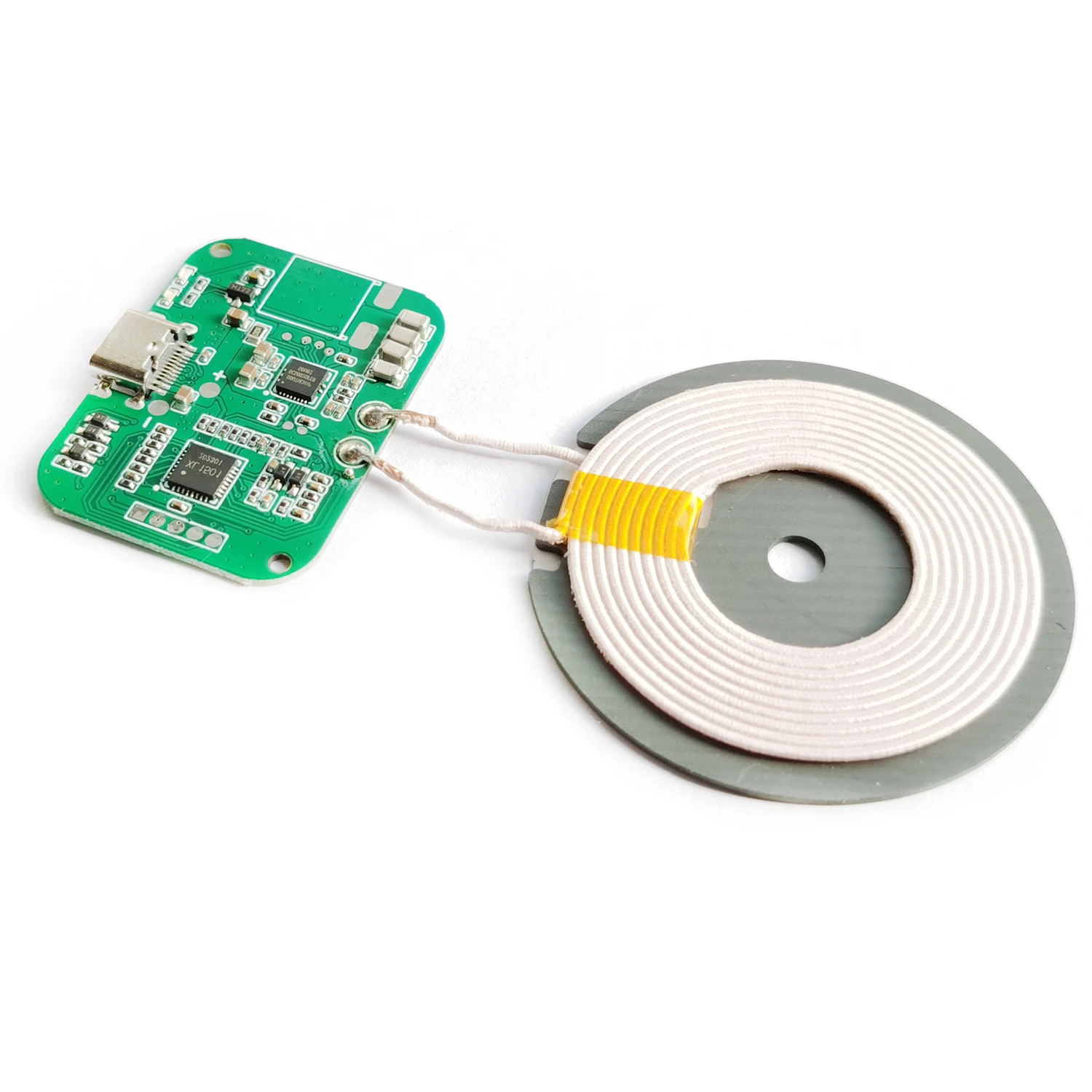

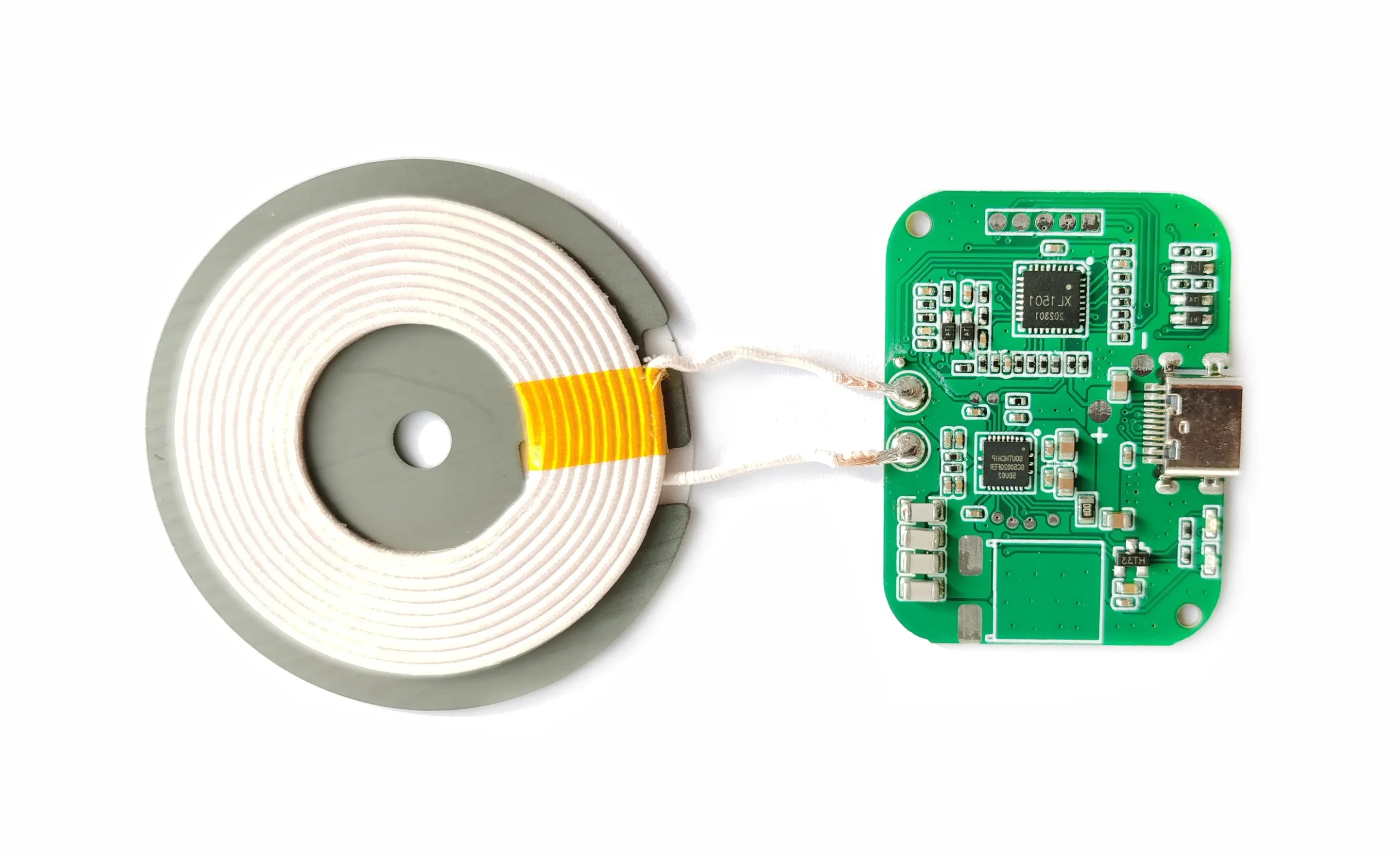

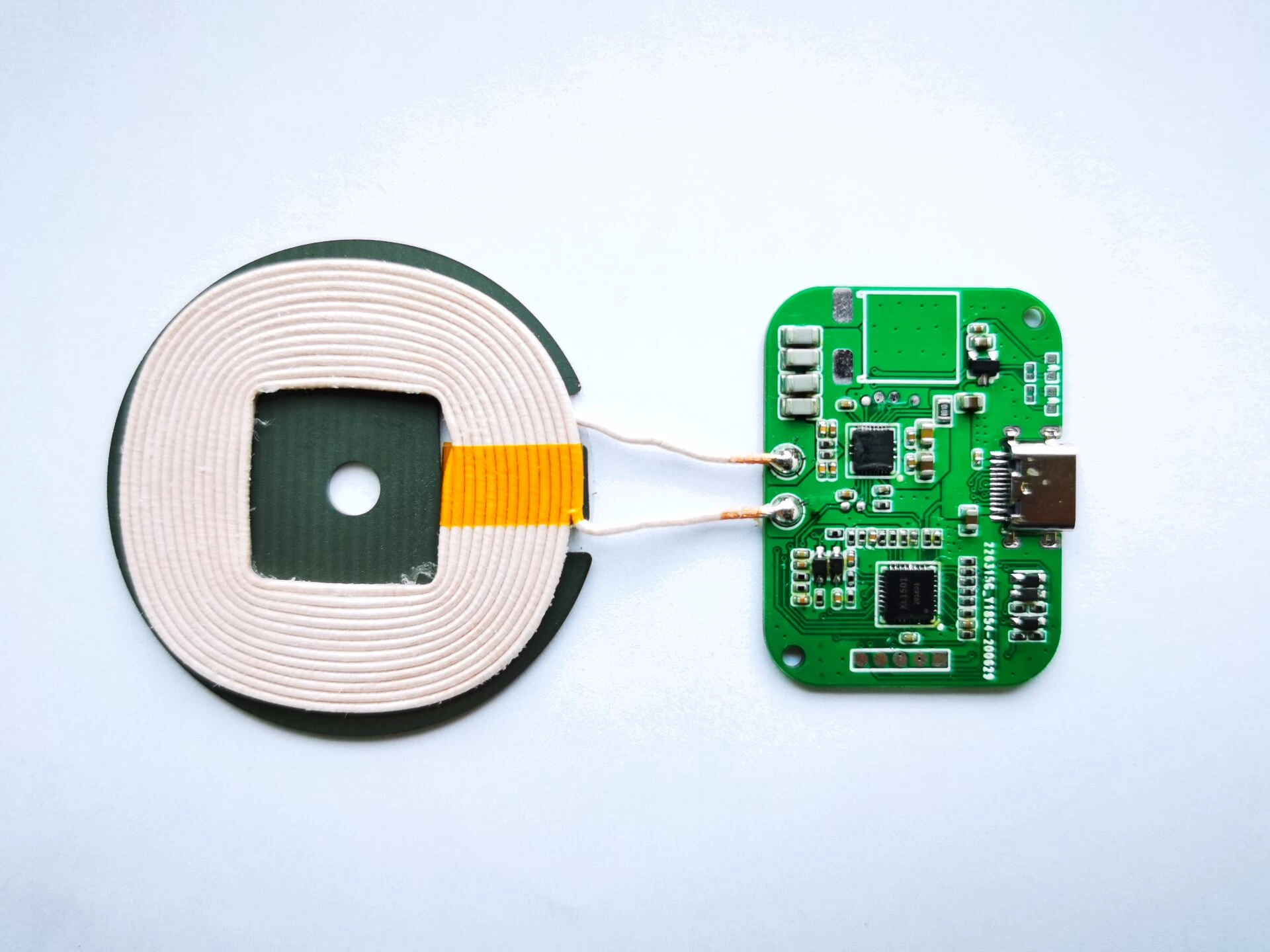

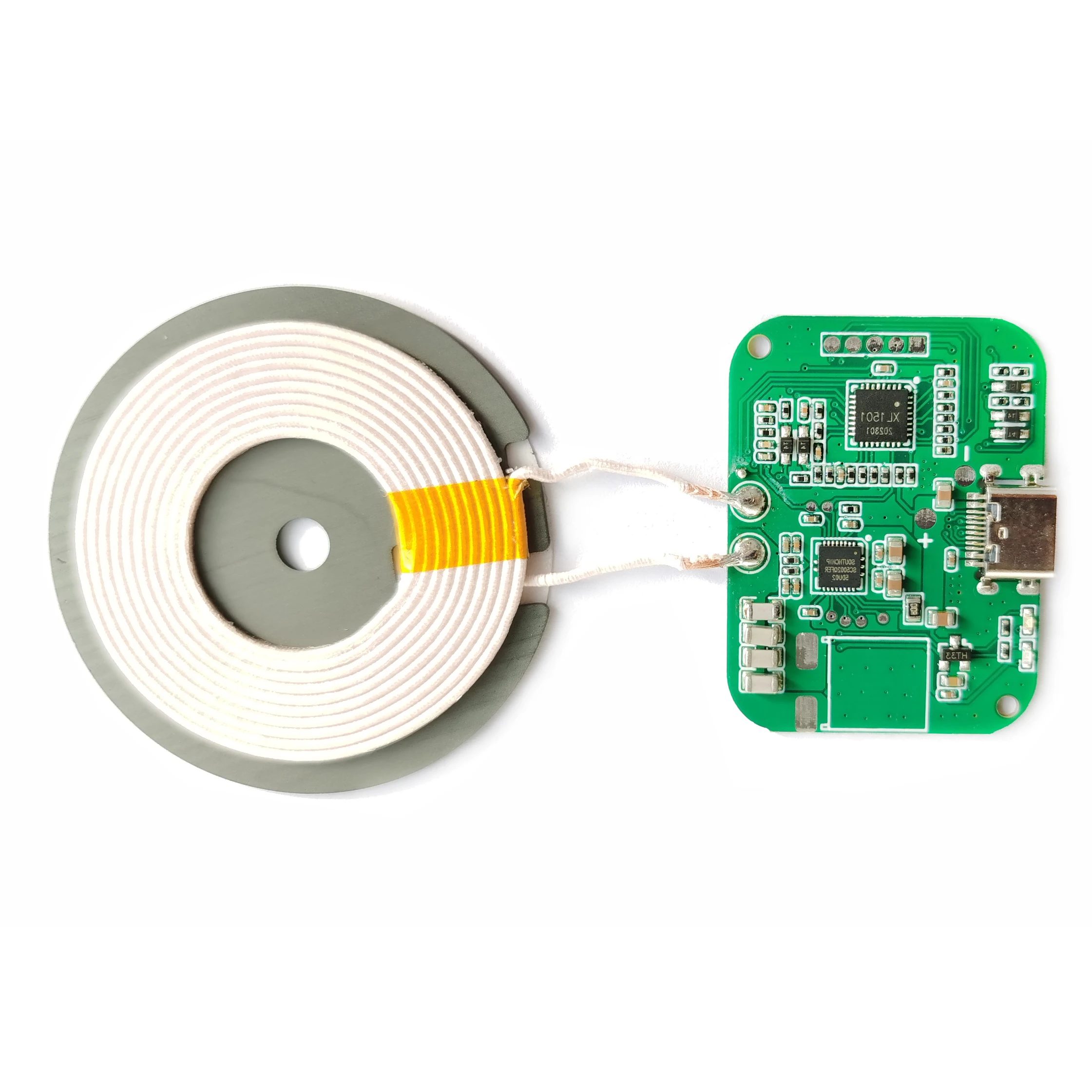

wireless charger module
|
?
|
?
|
|||
|
Types of
|
?
|
?QI 1.1 Version Solution
|
?
|
?
|
|||
|
Be applicabl?
|
?
|
Wireless Power Transmitter Module , Compatible with all Qi Standard4. Size : you demand
|
?
|
?
|
|||
|
Input
|
?
|
DC 5V2A /9V2A / 12V1A
|
?
|
?
|
|||
|
Output?
|
?
|
5V/1A? ?9V1.67A?
|
?
|
?
|
|||
|
Power Output
|
?
|
5W 10W 15W
|
?
|
?
|
|||
|
standby current?
|
?
|
<10mA
|
?
|
?
|
|||
|
Transmitting frequency
|
?
|
105K-205KHZ
|
?
|
?
|
|||
|
charging distance?
|
?
|
3mm~10mm (max)
|
?
|
?
|
|||
|
?Protectoin?
|
?
|
Over-current / overheating / short circuit
|
?
|
?
|
|||
|
LED?
|
?
|
?RED / BLUE
|
?
|
?
|
|||
|
Operating amb. Temp. & Hum?
|
?
|
0¡ãC ¨C 55¡ãC , 10 ¨C 85%
|
?
|
?
|
|||
|
Charging efficiency?
|
?
|
70%
|
?
|
?
|
|||
|
Certificate
|
?
|
CEROHSFCC
|
?
|
?
|
|||
?
1¡¢PCBA Working parameter
|
?
|
Test Conditions
|
Rated value
|
Minimum value
|
Maximum
|
unit
|
|
Standby power consumption
|
Vcc=5V
|
125
|
80
|
150
|
mW
|
|
Operating Voltage
|
VCC=5V
|
5
|
4.5
|
5.8
|
V
|
|
?
|
VCC=9V
|
9
|
8
|
13
|
V
|
|
?
|
VCC=12V
|
12
|
8
|
13
|
V
|
|
Working current
|
VCC=5V
|
1.5
|
0.5
|
1.65
|
A
|
|
?
|
VCC=9V
|
1
|
0.5
|
1.65
|
A
|
|
?
|
VCC=12V
|
0.8
|
0.5
|
1.65
|
A
|
|
Working distance
|
Samsung S8 + mobile phone
|
2
|
1
|
10
|
mm
|
|
working frequency
|
Adjust load offset
|
–
|
105
|
205
|
Khz
|
|
Protection current
|
VCC=5V
|
1.6
|
1.55
|
1.65
|
A
|
|
?
|
VCC=9V
|
1.6
|
1.55
|
1.65
|
A
|
|
?
|
VCC=12V
|
1.6
|
1.55
|
1.65
|
A
|
|
Output Power
|
VCC=5V
|
5
|
4
|
5
|
W
|
|
?
|
VCC=9V
|
10
|
7
|
12
|
W
|
|
?
|
VCC=12V
|
10
|
7
|
15
|
W
|
|
Transmission efficiency
|
?
|
80
|
50
|
85
|
%
|
|
Protection temperature
|
?
|
60
|
55
|
65
|
¡æ
|

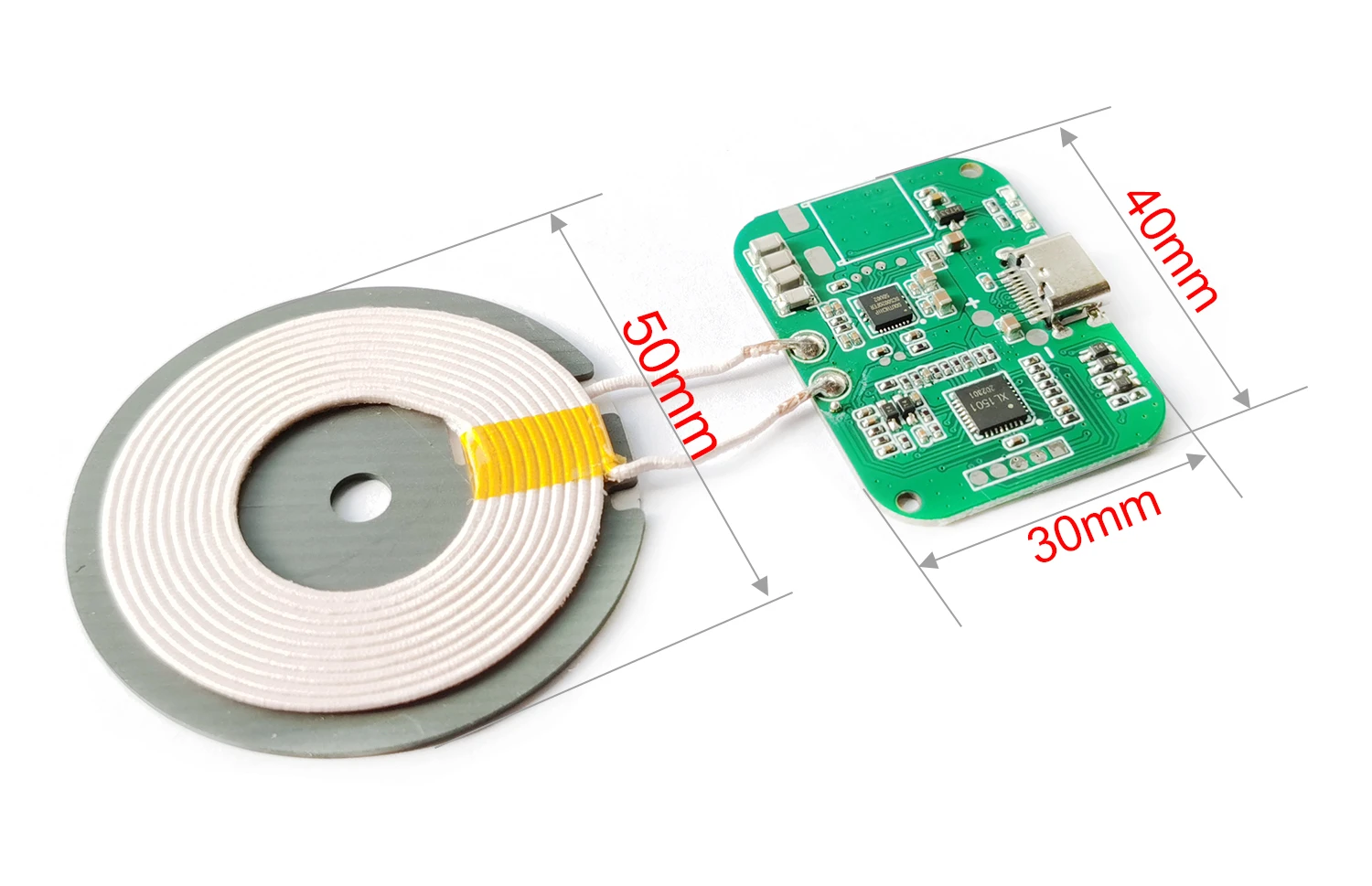

2¡¢PCBA with coil size
|
PCBA board size
|
40*30*3MM
|
|
On-board device height
|
1.7MM
|
|
Coil size
|
50*50*2.5MM
|
|
Coil length
|
15MM
|
3¡¢LED status indication
|
LED
|
Power-on
|
Standby
|
Charge
|
full
|
FOD/Report an error
|
|
Red
|
Red / Blue / turn on and off 1S
|
bright
|
turn off
|
turn off
|
Blue / red alternating 0.3S flash
|
|
Bule
|
?
|
turn off
|
bright
|
bright
|
?
|
?
?
4¡¢PD Compatibility test
?
|
Serial number
|
Brand
|
Model
|
Serial number
|
Brand
|
Model
|
|
1
|
Samsung
|
EP-TA800
|
29
|
hammer
|
CD106
|
|
2
|
Samsung
|
EP-TA845
|
30
|
Nanfu
|
NFTAC203
|
|
3
|
iPhone
|
A2166
|
31
|
Made in Beijing and Tokyo
|
TC-012
|
|
4
|
iPhone
|
A1947
|
32
|
Taiwan Speed Cruiser
|
RY-U32
|
|
5
|
iPhone
|
A1882
|
33
|
Google
|
G1000-US
|
|
6
|
iPhone
|
A1695
|
34
|
Llano
|
HPM6-PD3.0
|
|
7
|
Huawei
|
HW-200325CP0
|
35
|
Ascot
|
EC7C
|
|
8
|
Xiaomi
|
CDQ07ZM
|
36
|
Flash
|
FJ-SW618H-1C
|
|
9
|
Xiaomi
|
AD16ZM
|
37
|
Purple Rice
|
HA711
|
|
10
|
ANKER
|
A2041
|
38
|
Xuan yang
|
XY18W-1204
|
|
11
|
ANKER
|
A2029
|
39
|
Xie Yang
|
XY-0041
|
|
12
|
ANKER
|
A2615
|
40
|
Letv
|
EV-24ACN
|
|
13
|
ANKER
|
A2017
|
41
|
Hechuang Green Energy
|
TC-012
|
